Bathhouse

Course

ARCH201 - Intermediate Design I

Site Location

Marcus Garvey Park, NY

Directly working with the schist on Marcus Garvey Park’s hill, the bathhouse was designed to interact with the public pool adjacent to the site. Inspired by the art installations around the park, scultpure gardens were placed between the pools to allow transitions between the programs.

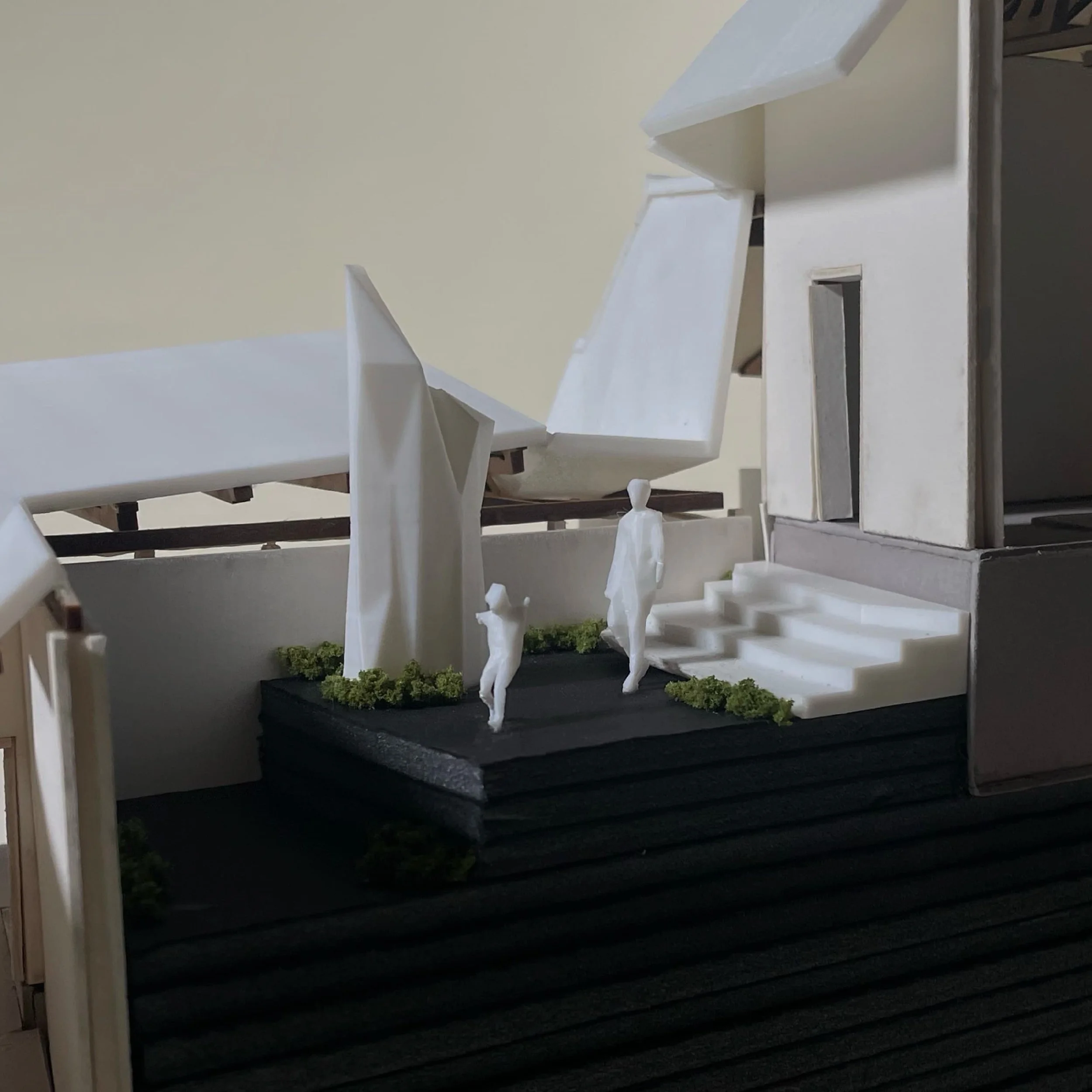

Exterior view of the main sculpture garden between programmed spaces
Interior view of tepid pool and shallow pool

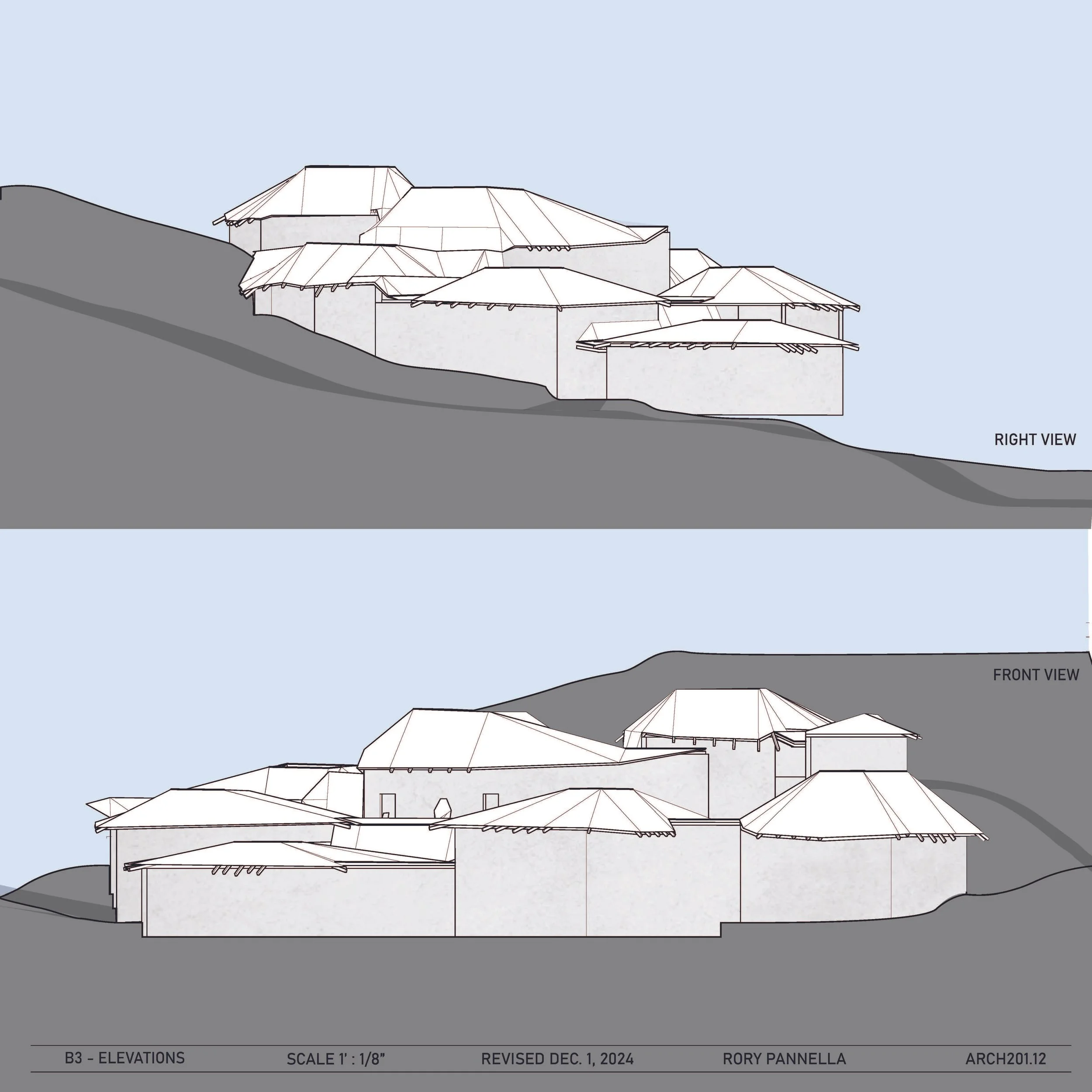

Elevations

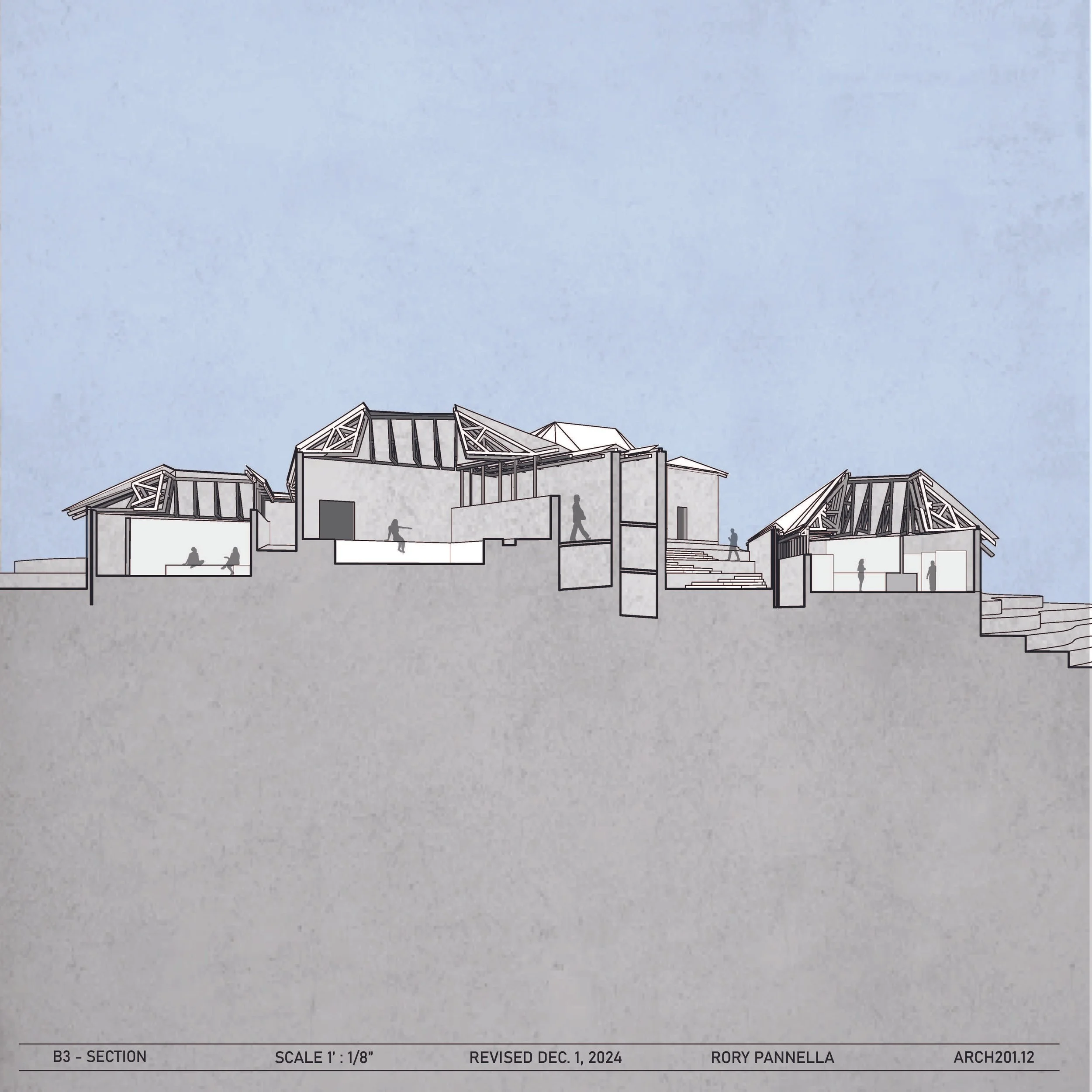

Section

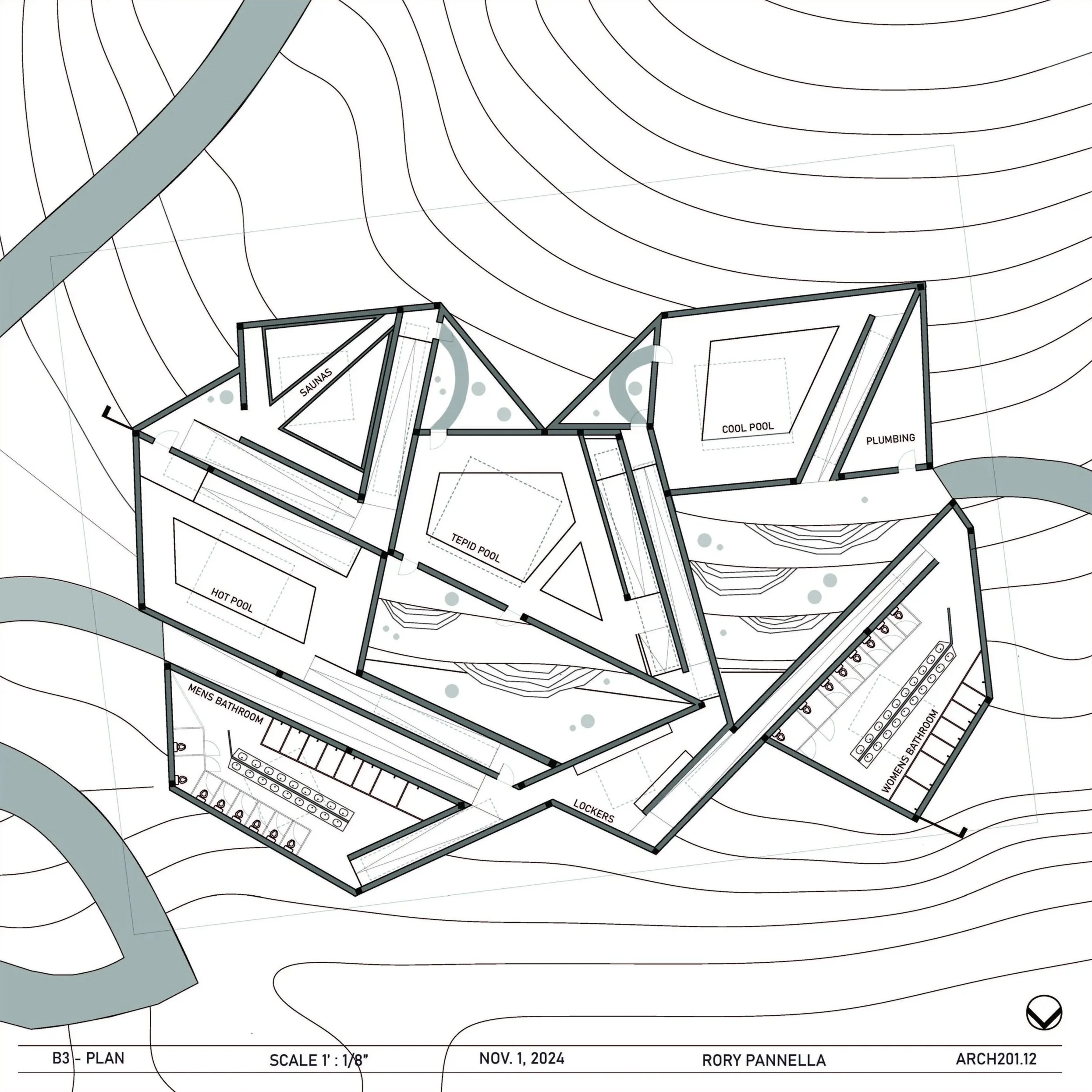

Plan

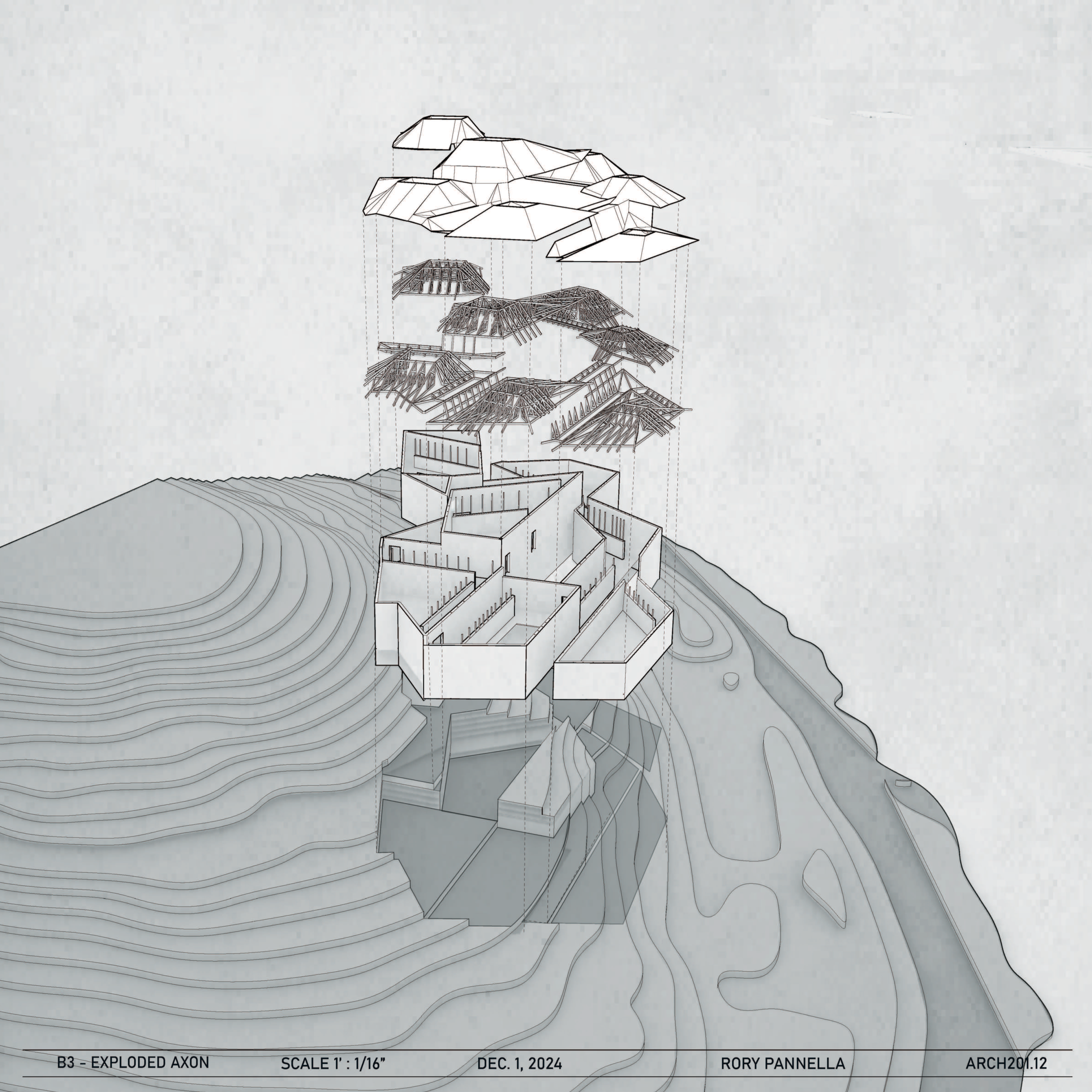

Exploded Axon

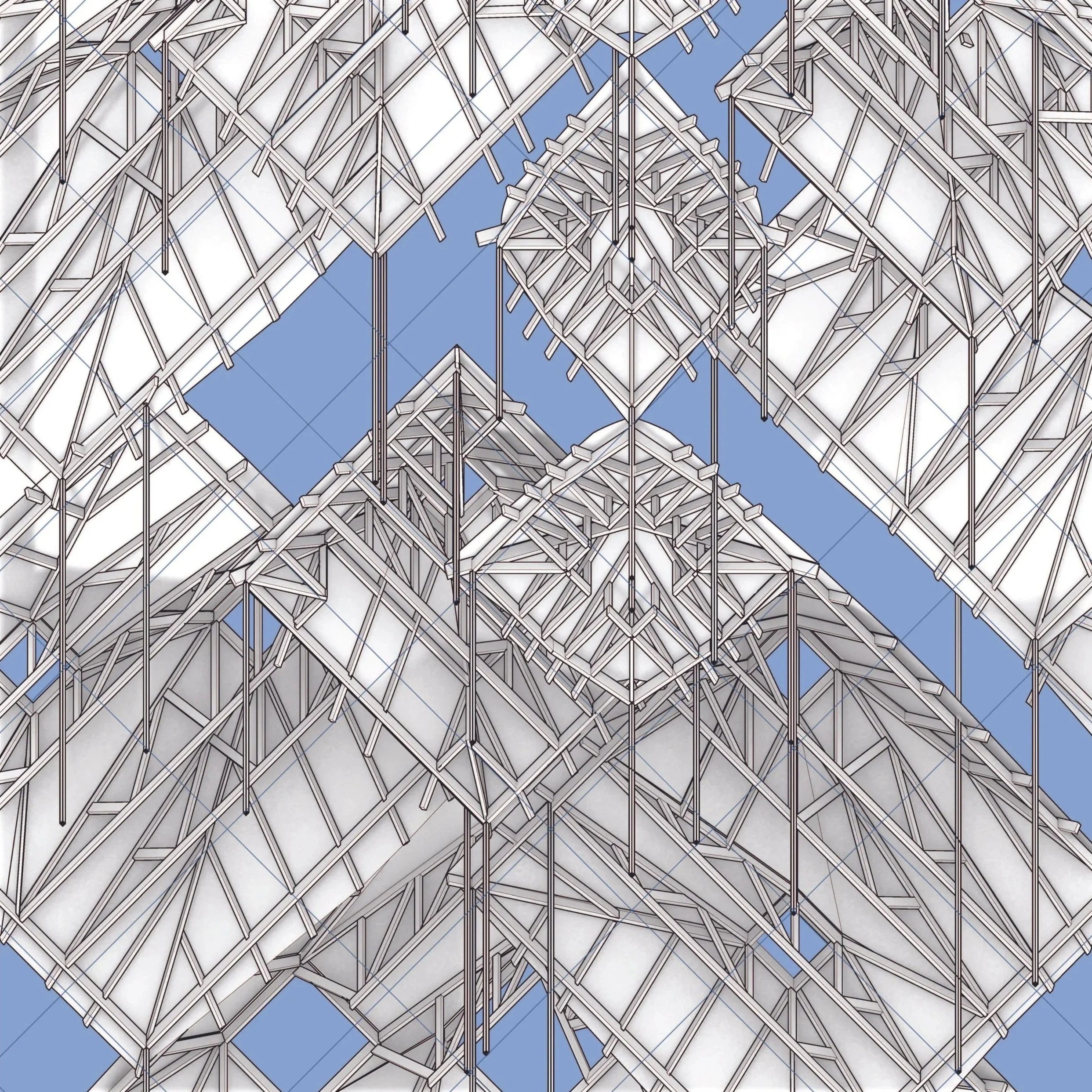

Hip Truss Roof Analysis - Field Grid Oblique Matrix
Rule based drawing used to design plan view

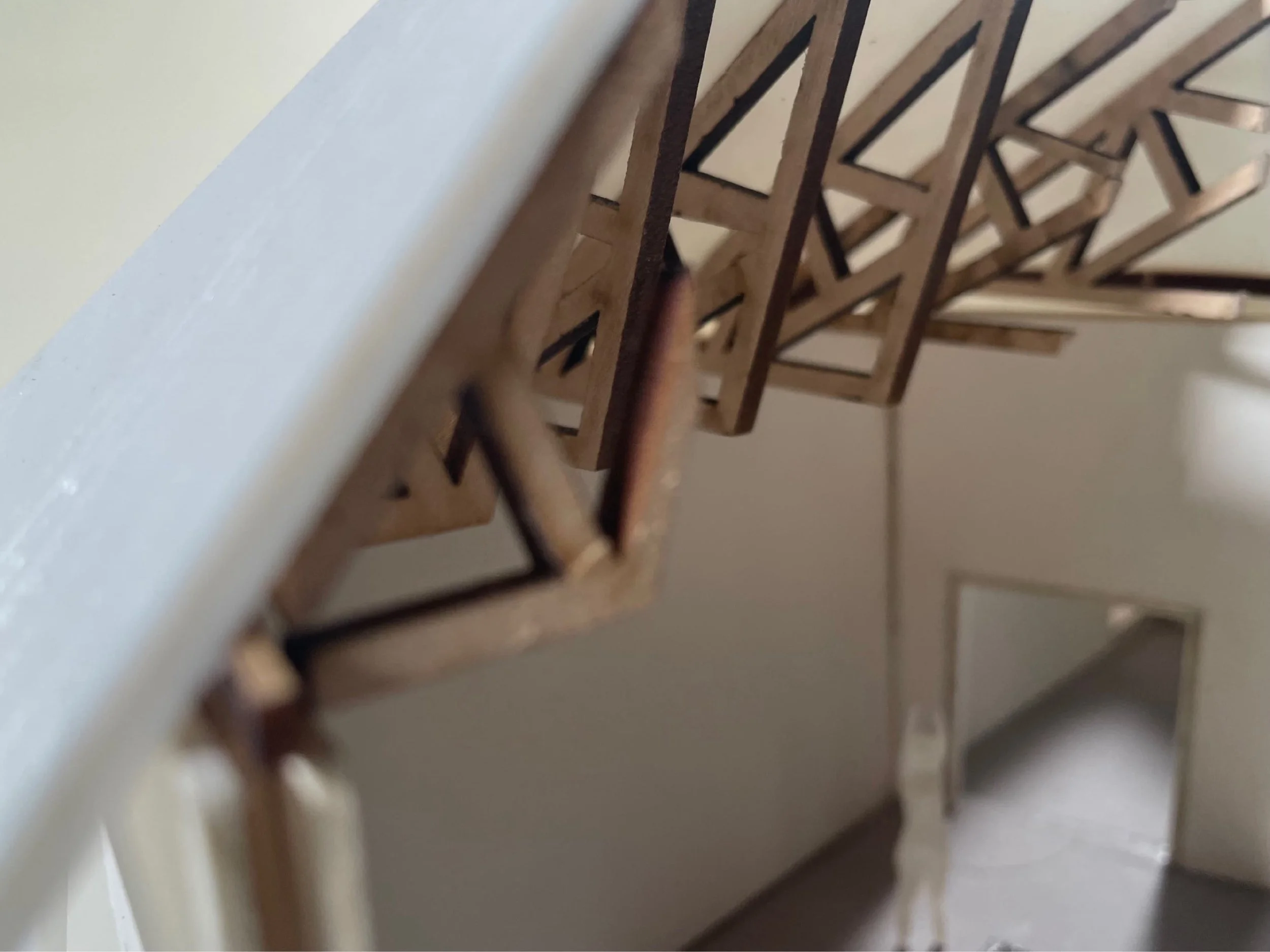

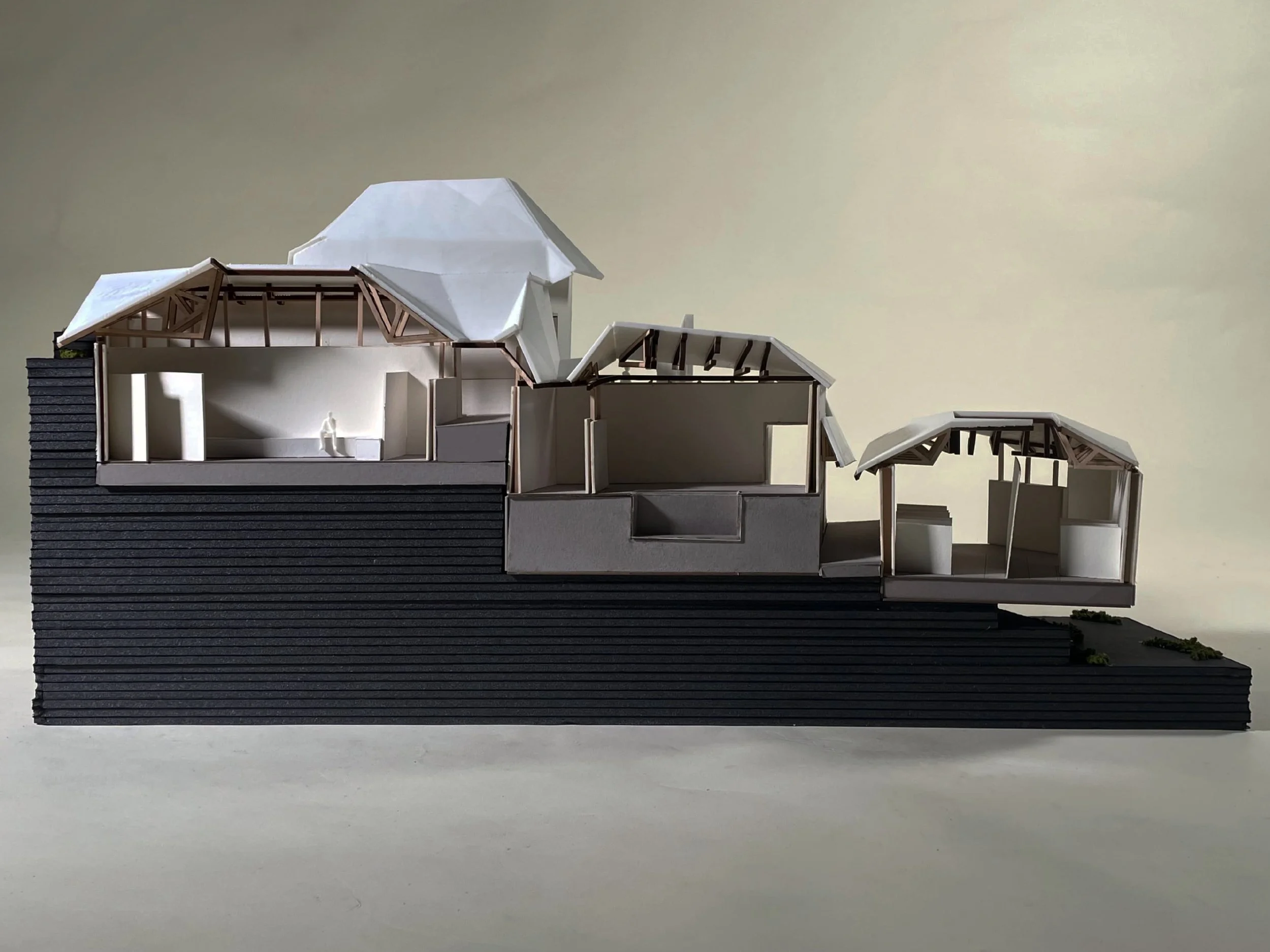

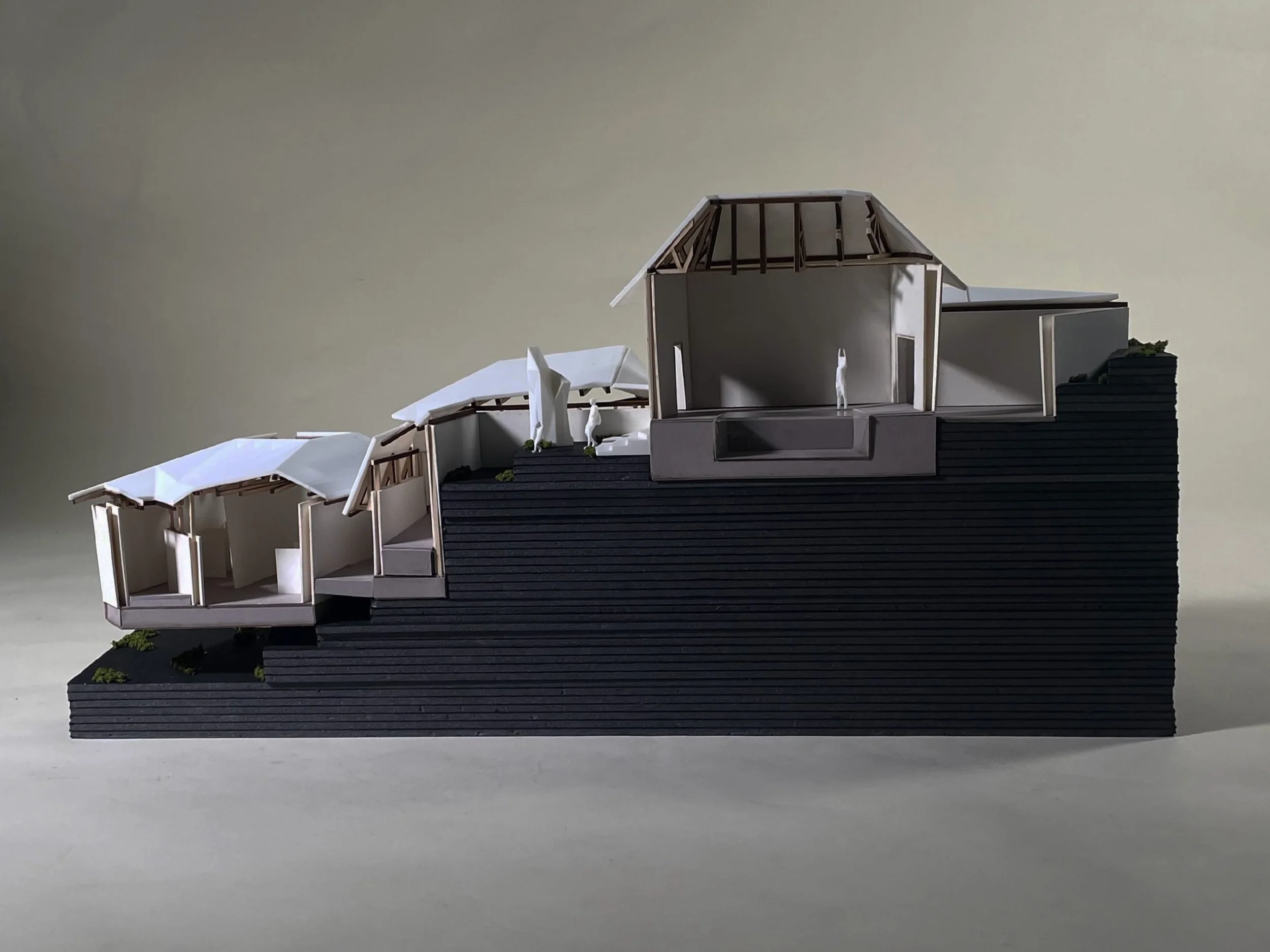

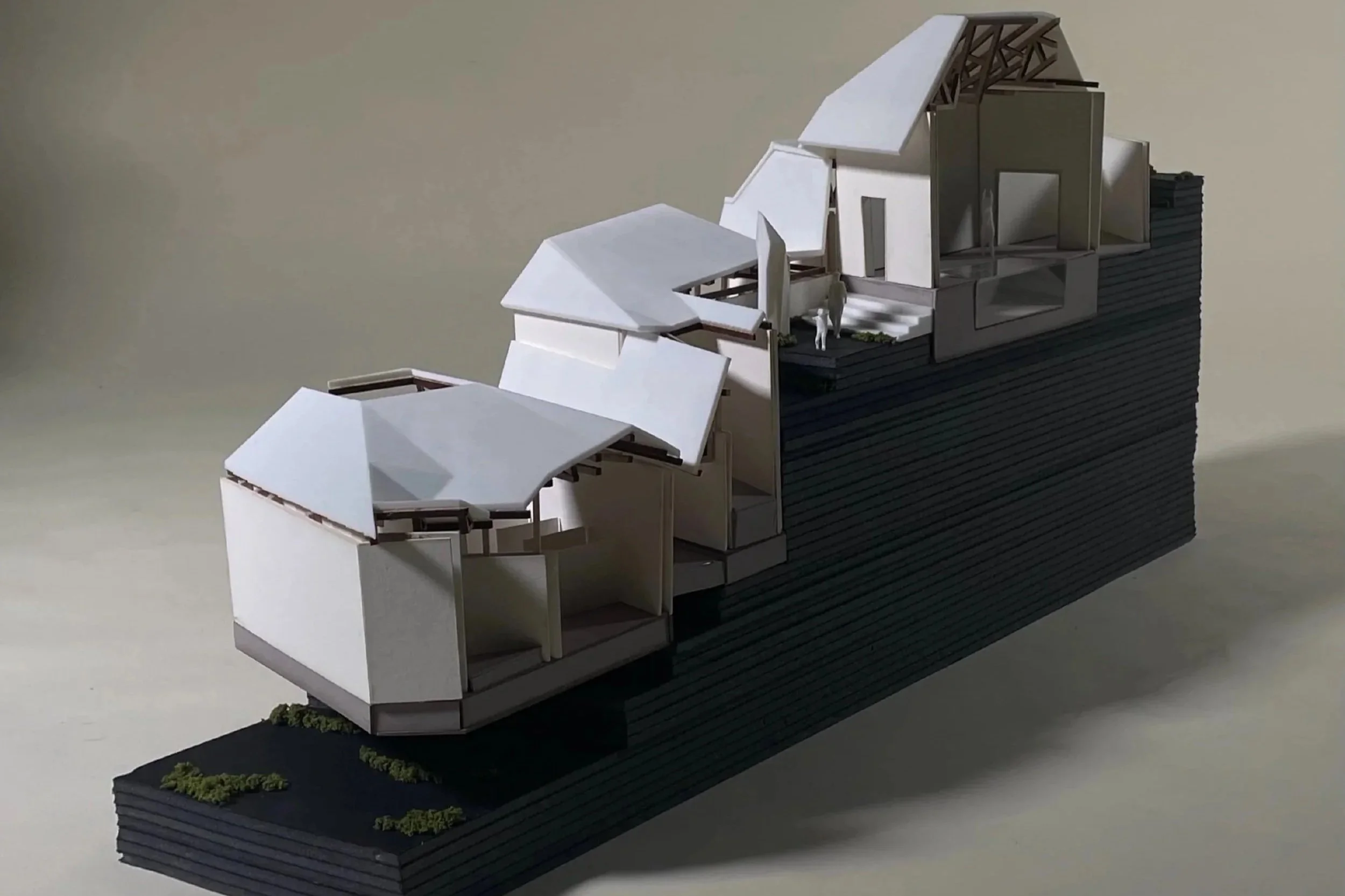

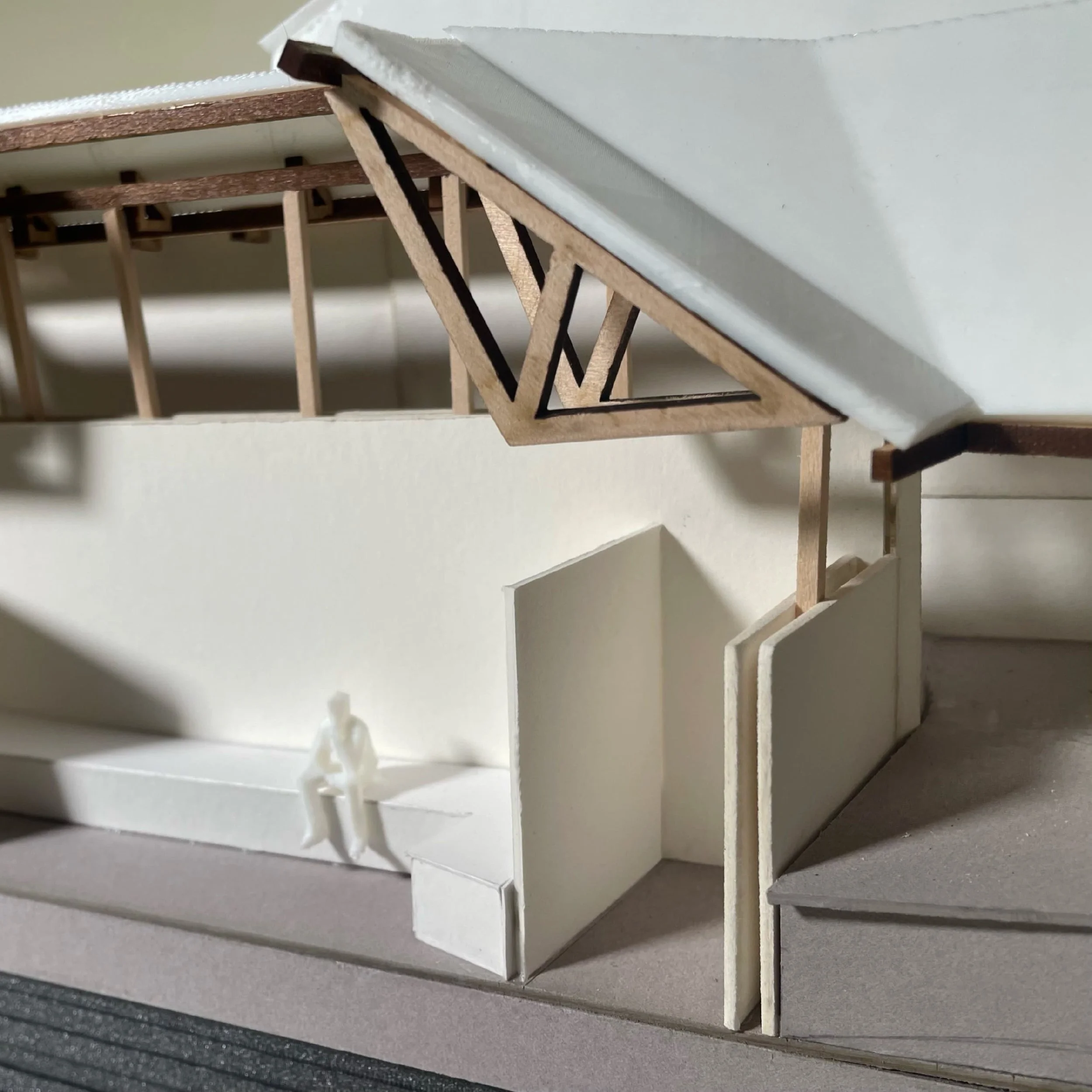

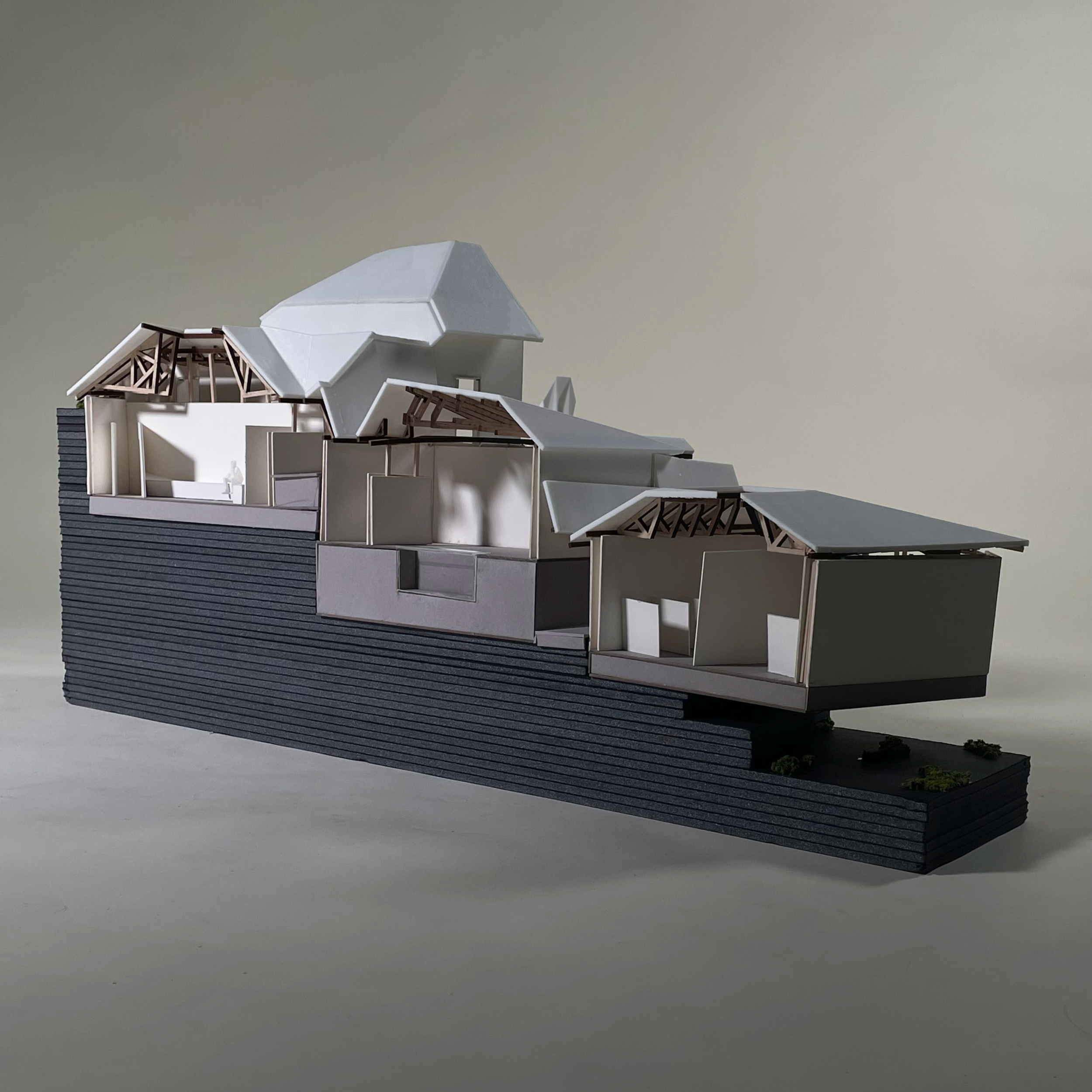

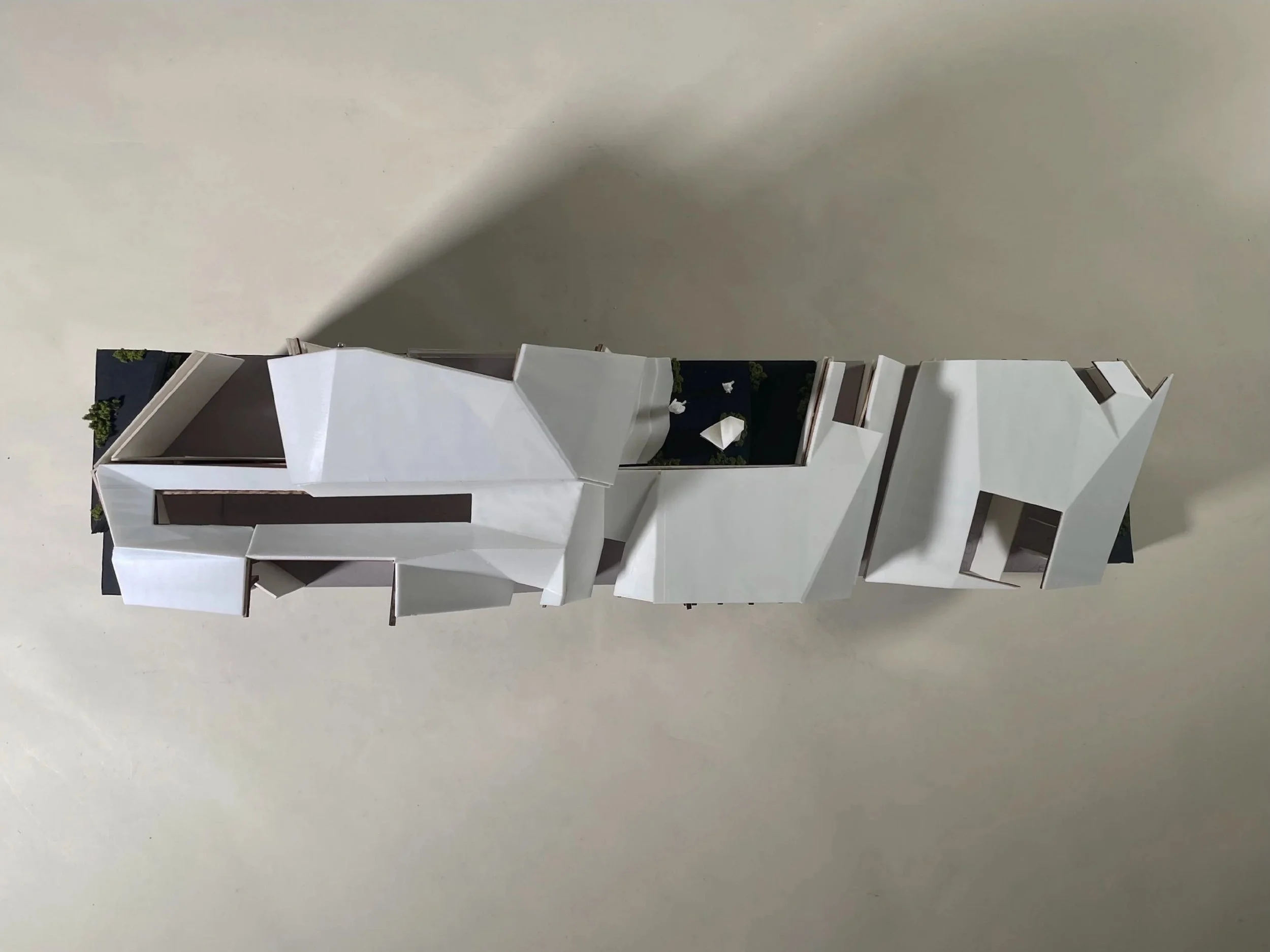

Section Model

Recognition
Honorable Mention in Model Making

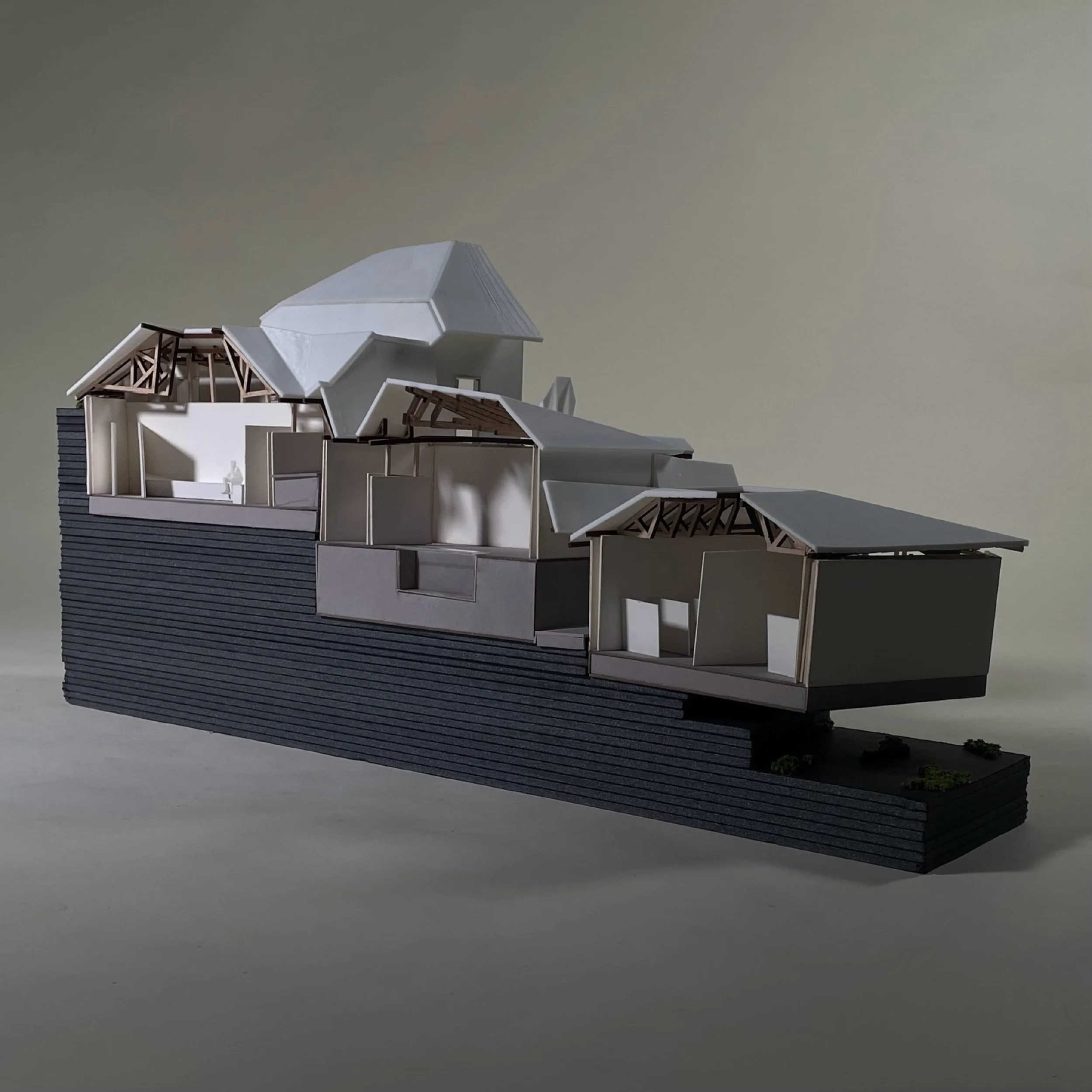

  • Section Model
